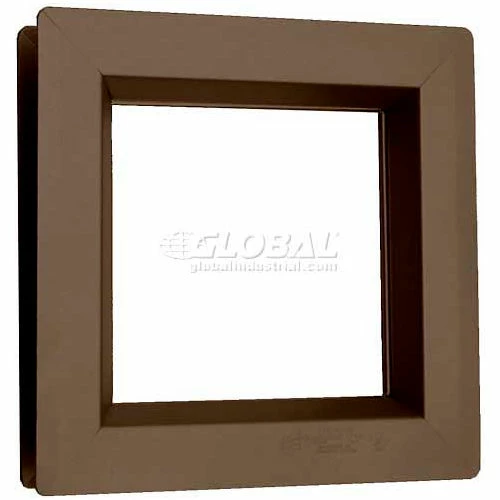

Steel Low Profile Slimline IG Vision Lite For 1″ Glazing VSIG0722B 01, 7″ X 22″, Bronze

VSIG – Slimline IG Vision Lite For 5/16″-1″ Glass

Low Profile Beveled IG Vision Lite for Fire Rated Doors. Glazing 5/16″ to 1″ Thickness.

Construction: 1-1/4″ trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side.

Fire-Rating, Testing & Listings: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

Max Size	60 X 104 in
Glass Thickness	5/16 – 1 in
Fits Door Thickness	For 1-3/4 Door in
Rough Opening	7 x 22 in
Min Size	3 X 3 in
Color Family	Bronze Powder Coated
Series	VSIG
Material	20 Gauge CRS Frame
Fasteners	#8 X 1-1/4" Flathead Phillips SMS
Description	Low Profile Slimline IG Vision Lite For 1" Glazing
Manufacturers Part Number	VSIG 0722B 01
Indoor/Outdoor	Interior
Brand	Air Louvers
Fire Rating	Up to 3 Hours
