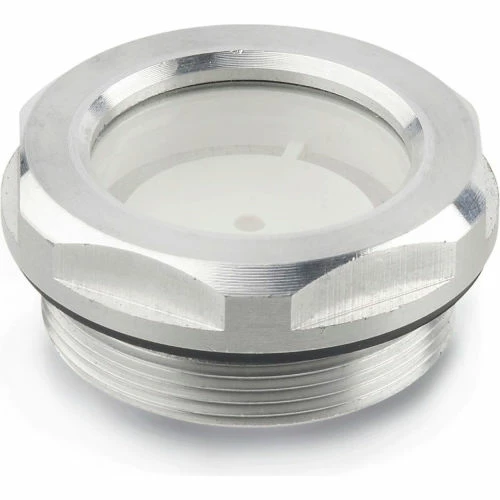

Best deal 🥰 Aluminum Fluid Level Sight Glass w/ Reflector – G 1-1/4" Pipe Thread – J.W. Winco R09/A 😉

Original price was: $25.95.Current price is: $18.17.

SKU: J.W. Winco WBB2225511 Categories: Door & Window Hardware, Viewers Tags: Aluminum w/ Matte Shot-Blast Finish, Fasteners & Hardware, GN743, Heat-Resistant Technopolymer Plastic (Polysulfon), Import, J.W. Winco, Natural Glass, NBR Rubber (Perbunan)

Nature-friendly materials, 100%.
Online assistance, always at your service.
100% Quality Promise
100% environmentally friendly material

Features:

Genuine glass of high stability and scratch proof.
Sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the softer elastomer which guarantees better and easier sealing.
Fluid level sight glasses GN 743 can be used on pressurized oil tanks.
NBR seal: maximum heat resistance: 100° C (212° F).
When mounting fluid level sight glasses on walls of less than 4 mm thickness, use nut GN 543.1.
Sight glasses can be ordered with or without a reflector.
Note: When mounting fluid level sight glases on walls of less than 4 mm thickness, use nut GN 543.1.

Thread Size	G 1-1/4 in
Across Flats	1.81" (46mm)
Inner Diameter	1.26"
Thread Length	.47 in
Height	.35"
Diameter	1.97"
Series	GN743
Sight Glass Material	Natural Glass
Sight Glass Body Material	Aluminum w/ Matte Shot-Blast Finish
Country of Origin	Import
Seal Material	NBR Rubber (Perbunan)
Reflector Material	Heat-Resistant Technopolymer Plastic (Polysulfon)
Manufacturers Part Number	743-32-G11/4-A
Max Pressure @ 70°F	180 psi
Brand	J.W. Winco
