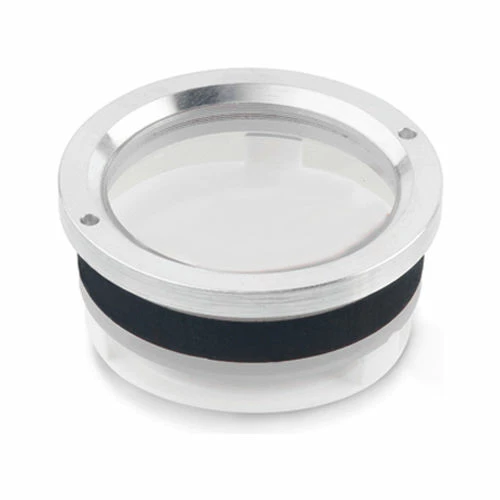

Outlet 🤩 Aluminum Press Fit Fluid Level Sight Glass w/o Indicator – Fits 38mm (1.50") Bore – J.W. Winco RD3/A 👏

Original price was: $37.95.Current price is: $26.57.

SKU: J.W. Winco WBB2225587 Categories: Door & Window Hardware, Viewers Tags: Aluminum, Fasteners & Hardware, GN537, Import, J.W. Winco, NBR Synthetic Rubber, Plexiglass (PMMA), Push-Fit (Pin Key Installed)

Nature-friendly materials, 100%.
Online assistance, always at your service.
100% Quality Promise
100% environmentally friendly material

No thread is required for installing the GN 537 fluid level sight glasses.The fluid level sight glass is inserted into the bore d2, tolerance H11. By simply tightening the ring nut using the pin key, the seal is pressed against the contact surface which, at the same time, holds the sight glass in position. For removal, reverse the procedure. Application is limited to non-pressurized or slightly pressurized tanks. Maximum heat resistance: 80° C (175° F).

Pin Diameter	3mm
Body Length	18mm in
Bore	38mm in
Indicator Mark	8mm
Height	5.5mm
Diameter	45mm
Window Glass	32mm
C to C Distance For Key	40mm
Series	GN537
Sight Glass Material	Plexiglass (PMMA)
Sight Glass Body Material	Aluminum
Mounting Location	Push-Fit (Pin Key Installed)
Country of Origin	Import
Seal Material	NBR Synthetic Rubber
Manufacturers Part Number	RD3/A
Brand	J.W. Winco
