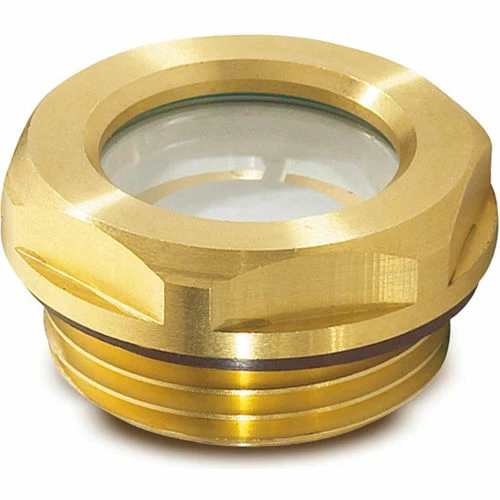

Deals 👍 Brass Fluid Level Sight Glass w/ Reflector – G 1/2" Pipe Thread – J.W. Winco 50GOD3/A ⌛

Original price was: $18.25.Current price is: $12.78.

SKU: J.W. Winco WBB2225559 Categories: Door & Window Hardware, Viewers Tags: Brass, Fasteners & Hardware, GN743.2, Heat-Resistant Technopolymer Plastic (Polysulfon), Import, J.W. Winco, Natural Glass, NBR Rubber (Perbunan)

Nature-friendly materials, 100%.
Online assistance, always at your service.
100% Quality Promise
100% environmentally friendly material

Features:

Genuine natural glass of high stability and scratch proof.
Sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
Outside diameter is chosen to match mounting holes for tube fittings according to DIN 3865. Seal is housed in a groove and therefore cannot be lost. Meanwhile, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal also allows the use of a softer Elastomer, which guarantees better and easier sealing.
Fluid level sight glasses GN 743.2 can be used on pressurized oil tanks. Also, these oil level site glasses are suitable for applications with subpressure.
Maximum heat resistance: 100° C (212° F).
When mounting fluid level sight glasses on walls of less than 4mm thickness, use nut GN 543.1.

Thread Size	G 1/2 in
Across Flats	.91" (23mm)
Inner Diameter	.55"
Thread Length	.33 in
Height	.30"
Diameter	1.02"
Series	GN743.2
Sight Glass Material	Natural Glass
Sight Glass Body Material	Brass
Country of Origin	Import
Seal Material	NBR Rubber (Perbunan)
Reflector Material	Heat-Resistant Technopolymer Plastic (Polysulfon)
Manufacturers Part Number	743.2-14-G1/2-A
Brand	J.W. Winco
