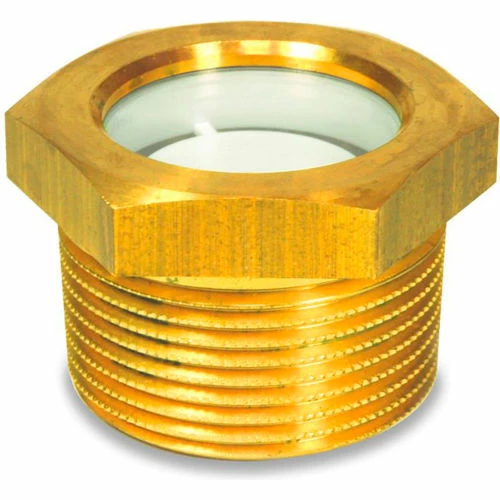

Best reviews of ✨ Brass Fluid Level Sight w/ ESG Glass w/o Reflector – R 3/8" Conical Thread – J.W. Winco 6CSMF 😉

Original price was: $18.50.Current price is: $12.95.

SKU: J.W. Winco WBB2225534 Categories: Door & Window Hardware, Viewers Tags: Brass, ESG Glass, Fasteners & Hardware, FPM Rubber (Viton®), GN743.8, J.W. Winco, R 3/8"

Nature-friendly materials, 100%.
Online assistance, always at your service.
100% Quality Promise
100% environmentally friendly material

The conical thread of GN 743.8 fluid level sight glasses makes a metallic seal possible. When the male thread is tightened, it wedges itself within the appropriate female thread. At the reference level “a,” the male thread has the same thread diameter as the female thread, so that it can be fastened in by hand. The secure tightening by means of a tool increases the length of engagement and seals the screw connection. Additionally a sealant (fibrous or teflon band) is usually used. The thread is “roughened,” so that the sealant does not shift during fastening. Fluid level sight glasses GN 743.8 can be used on pressurized oil tanks. Temperature resistant to 356° F (180° C).

Thread Size	R 3/8 (Male/Female) in
Across Flats	.75" (19mm)
Useable Thread	.40"
Thread Length	.59 in
Height	.24"
Point to Point	.87"
Diameter	.43"
O-Ring Material	FPM Rubber (Viton®)
Male Thread	R 3/8"
Series	GN743.8
Sight Glass Material	ESG Glass
Sight Glass Body Material	Brass
Female Thread	R 3/8"
Country of Origin	Import
Manufacturers Part Number	6CSMF
Brand	J.W. Winco
