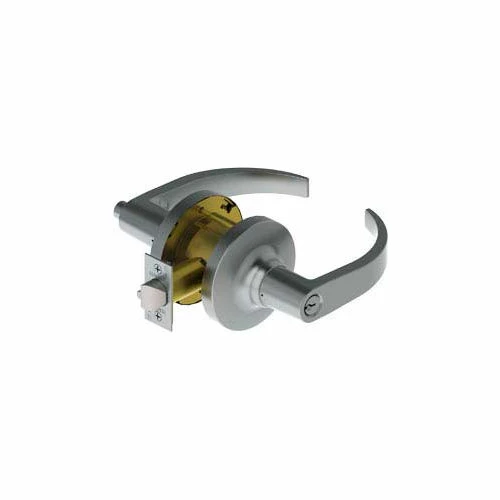

Best Sale 🧨 Hager 3400 Series Grade 1 Cylindrical Lock – Storeroom 🧨

Features:

• Grade 1 Cylindrical
• Extra heavy duty commercial, industrial, institutional
• Lifetime warranty
• No exposed mounting screws
• Non-handed
• Conventional cylinder or Small Format Interchangeable Core housing available
• Standard Door Prep: 2-1/8″ (54 mm) diameter (cross bore), Latch hole: 1″ (25.4 mm) diameter (edge bore)
• Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 1, ADA Compliant ANSI A117.1 Accessibility Code (levers only), ANSI A250.13 Severe Windstorm Resistant Component
• UL/cUL Listed for all functions up to 3 hours for “A” label doors
• UL10C/UBC 7-2 (1997) Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Exposed Trim: Knobs: Wrought brass or stainless steel
• Levers: Cast zinc Rose: Wrought brass or stainless steel
• Rose Diameter: 3-17/32″ (90 mm) levers; 3″ (76 mm) knobs
• Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance, Free wheeling (levers only), Thru-bolt mounting (levers only)
• Keys: Two operating keys supplied per lock
• Cylinders/Cores:Brass 6-pin, keyed different – C Keyway, Drilled 6-pin, Keyed 5-pin – Standard, Other keying options, including keyed 6-pin, available from factory
• Small Format Interchangeable Core housing available: SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: Knobs: 1-3/8″ (35 mm) – 1-3/4″ (45 mm), Levers: 1-3/8″ (35 mm) – 2″ (51 mm)
• Backset: 2-3/4″ (70 mm) – Standard, 2-3/8″ (60 mm) – Optional, 3-3/4″ (94 mm) – Optional, 5″ (128 mm) – Optional
• Latchbolt: 1/2″ (13 mm) throw, stainless steel, 1-1/8″ (29 mm) x 2-1/4″ (57 mm) faceplate, Square corner faceplates standard, round corner available, Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only, 3/4″ (18 mm) latch available
• Strike: 3935 ASA 1-1/4″ (32 mm) x 4-7/8″ (124 mm) strike – Standard
• Functions: 10 Passage, 17 Dummy, 40 Privacy, 50 Office, 53 Entry, 70 Classroom, 73 Corridor (levers only), 80 Storeroom, 95 Intruder Classroom (levers only)
• Finishes: US3, US4, US10, US10B, US26, US26D (levers only), US3, US32D (knobs only)
• Lever Options: Apollo knob; Archer, August, Withnell levers
• Options: Lead lined (levers only), Tactile Warning (levers only), Split finish, Additional latchbolts and strikes available, Intruder Classroom indicator available, specify IND (inside rose will have three indicator points for a guide reference for locking the door)
