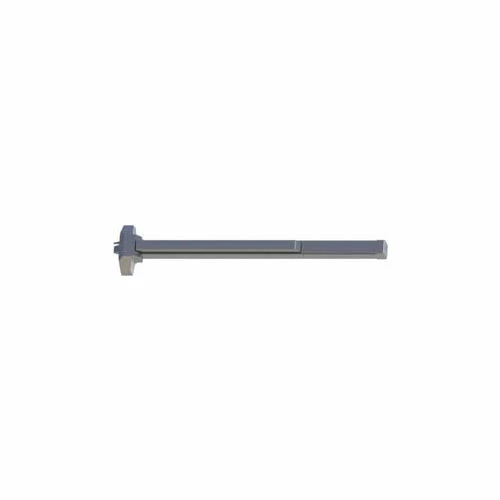

Hager 4700 Series SVR Exit Device

Applications: Commercial, Standard Duty
Certifications: UL/cUL Listed for up to three hours for “A” label doors, UL10C/UBC 7-2 (1997) Positive Pressure Rated, ULB10 Neutral Pressure Rated, Hex dogging feature standard on non-fire labeled doors, Complies with AN SI A117.1 for accessible buildings and facilities
Trim: Outside Escutcheon Handed trim available
Head Cover: Plated Zinc
Chasis: Plated Steel
End Caps: Plated Steel, Stainless Steel
Door Size: 36″ field sizeable to 30″, 48″ field sizeable to 36″ – Optional
Door Thickness: 1 3/4″
Stile Width: 4 1/2″ – Minimum stile width for single door applications, 4″ – Minimum stile width required for double door applications, 5″ – Minimum stile width required for double doors with 2″ mullion
Fasteners: Wood And Machine Screws, Thru-bolts
Latchbolt: 3/8″ throw, Stainless Steel with dead latch
Strikes: Stainless Steel with plated rollers, Surface applied to frame with slotted holes for easy adjustment
Finishes: U S3, U S32D, ALM, DBZ
Functions: Cylinder Cut-Out 08, Blank Escutcheon 14, Night Latch 03, Dummy 02
Notes: Trim is non-handed, Center line prep is 40″. If door prep elevation is lower, a longer rod will need to be ordered.
