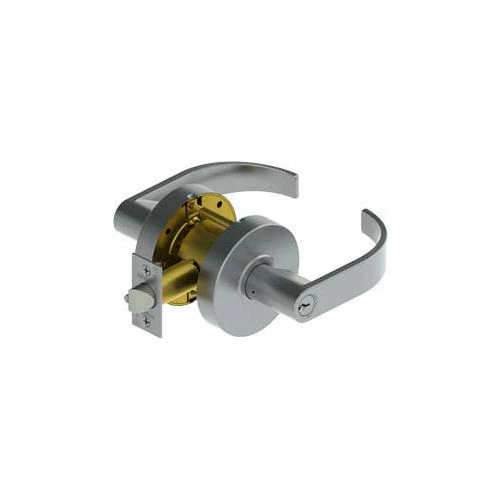

Discount 👏 Hager Companies 2553 Grade 2 Cylindrical Lock – Entry 2-3/4" Us26d Wtn Nc Asa Ic 🛒

Features

• One-year warranty
• No exposed mounting screws
• Non-handed
• Standard cylinder or Small Format Interchangeable Core housing available
• Applications: Standard duty commercial,Standard door prep – 2-1/8 (54 mm) diameter (cross bore), Latch hole – 1 (25.4 mm) diameter (edge bore)
• Certifications: BHMA Certified ANSI A156.2, Series 4000, Grade 2, ADA Compliant ANSI A117.1 Accessibility Code, UL/cUL Listed for all functions up to 3 hours A label single doors, UL 10C/UBC 7-2 (1997) Positive Pressure Related UL 10B Neutral Pressure Rated
• Warranty: One-year
• Exposed Trim: Wrought brass, bronze, and stainless steel, Lever is zinc based, plated to match BHMA symbols
• Rose Diameter: 3-11/32 (85 mm)
• Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance
• Removable thru-bolts Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty
• Keys: Two operating keys supplied per lock
• Cylinders/Cores: Brass, keyed different, C keyway, Drilled 6-pin, keyed 5-pin, Other keying options, including keyed 6-pin, available from the factory, Small Format Interchangeable Core housing available, SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: 1-3/8 – 2 (35 mm – 51 mm)
• Backset: 2-3/4 (70 mm) standard, 2-3/8 (60 mm) optional
• Latchbolt: 1/2 (13 mm) throw, stainless steel, 1-1/8 x 2-1/4 (29 mm x 57 mm) faceplate for 2-3/4 (70 mm) backset, 1 x 2-1/4 (25 mm x 57 mm) faceplate for 2-3/8 backset, Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
• Strike: 3935 ASA 1-1/4 x 4-7/8 (32 mm x 124 mm) strike standard, Optional strikes available
• Functions: 10 Passage, 17 Dummy, 25 Exit Only, 27 Back-to-Back Dummy, 40 Privacy, 50 Office, 53 Entry, 70 Classroom,80 Storeroom
• Finishes: US3, US10B, US26DLever Options: Archer, Withnell levers
• Options: Lead lined, Tactile Warning
• Notes: Blank plate projection is 13/16 (21 mm) for function 25
