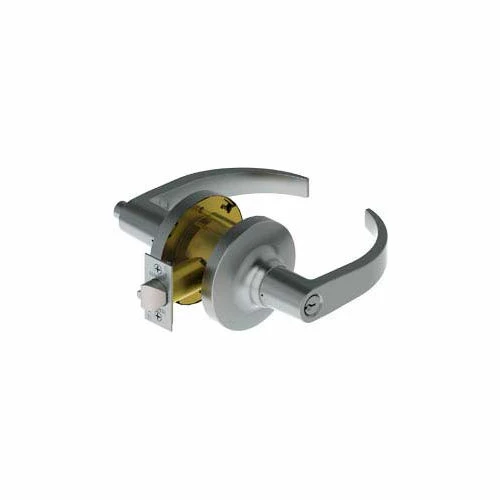

Outlet 🧨 Hager Companies 3453 Grade 1 Cylindrical Lock – Entry 2-3/4" Us26d Aug Nc Asa Ic 🔥

Features

• Lifetime warranty
• No exposed mounting screws
• Non-handed
• Conventional cylinder or Small Format Interchangeable Core housing available
• Standard Door Prep: 2-1/8 (54 mm) diameter (cross bore) Latch hole: 1 (25 mm) diameter (edge bore)
• Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 1, ADA Compliant ANSI A117.1 Accessibility Code (levers only), ANSI A250.13 Severe Windstorm Resistant Component, UL/cUL Listed for all functions up to 3 hours for A label doors UL10C/UBC 7-2 (1997) Positive Pressure Rated UL10B Neutral Pressure Rated
• Exposed Trim: Knobs: Wrought brass or stainless steel
• Levers: Cast zinc Rose: Wrought brass or stainless steel
• Rose Diameter: 3-17/32 (90 mm) levers; 3 (76 mm) knobs
• Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance, Free wheeling (levers only), Thru-bolt mounting (levers only)
• Keys: Two operating keys supplied per lock
• Cylinders/Cores: Brass 6-pin, keyed different – C Keyway, Drilled 6-pin, Keyed 5-pin – Standard,Other keying options, including keyed 6-pin, available from factory,Small Format Interchangeable Core housing availableSFIC uncombinated or combinated, brass 6- or 7-pin sold separately
• Door Thickness: Knobs: 1-3/8 – 1-3/4 (35 mm – 45 mm),Levers: 1-3/8 – 2 (35 mm – 51 mm)
• Backset: 2-3/4 (70 mm) – Standard, 2-3/8 (60 mm) – Optional, 3-3/4 (94 mm) – Optional, 5 (128 mm) – Optional, Square corner faceplates standard, round corner available, Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only, 3/4 (18 mm) latch available
• Strike: 3935 ASA 1-1/4 x 4-7/8 (32 mm x 124 mm) strike – Standard
• Functions: 10 Passage, 17 Dummy, 40 Privacy, 50 Office, 53 Entry, 70 Classroom, 73 Corridor (levers only), 80 Storeroom, 95 Intruder Classroom (levers only)
• Lever Options: Apollo knob; Archer, August, Withnell levers
• Options: Lead lined (levers only), Tactile Warning (levers only), Split finish, Additional latchbolts and strikes available, Intruder Classroom indicator available, specify IND (inside rose will have three indicator points for a guide reference for locking the door)
